RightMark Audio Analyzer test report

Testing device moshi_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.9 dB / -1.0 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.05
Excellent
Noise level, dB (A)
-84.4
Good
Dynamic range, dB (A)
84.3
Good
THD, %
0.00621
Very good
THD + Noise, dB (A)
-72.8
Average
IMD + Noise, %
0.031
Good
Stereo crosstalk, dB
-56.5
Average
IMD at 10 kHz, %
0.022
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.21, +0.02
-0.24, -0.01
From 40 Hz to 15 kHz, dB
-0.05, +0.02
-0.08, -0.01

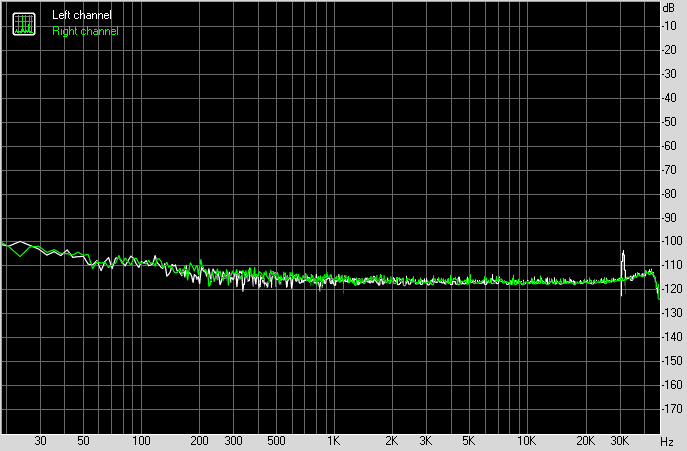

Noise level

Spectrum graph


Left
Right
RMS power, dB
-83.3
-83.2
RMS power (A-weighted), dB
-84.6
-84.2
Peak level, dB FS
-65.1
-56.7
DC offset, %
+0.0
+0.0

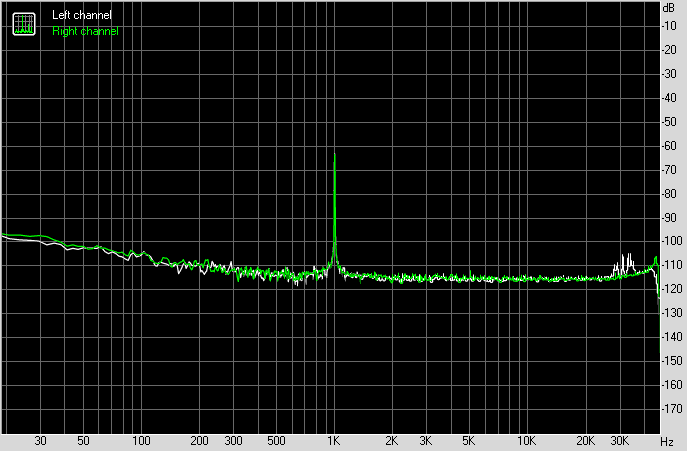

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+83.1
+82.9
Dynamic range (A-weighted), dB
+84.4
+84.3
DC offset, %
+0.00
+0.00

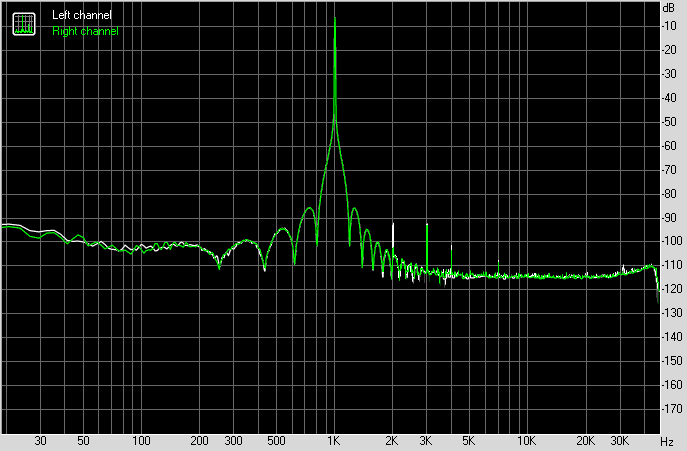

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00719
0.00524
THD + Noise, %
0.02295
0.02317
THD + Noise (A-weighted), %
0.02294
0.02271

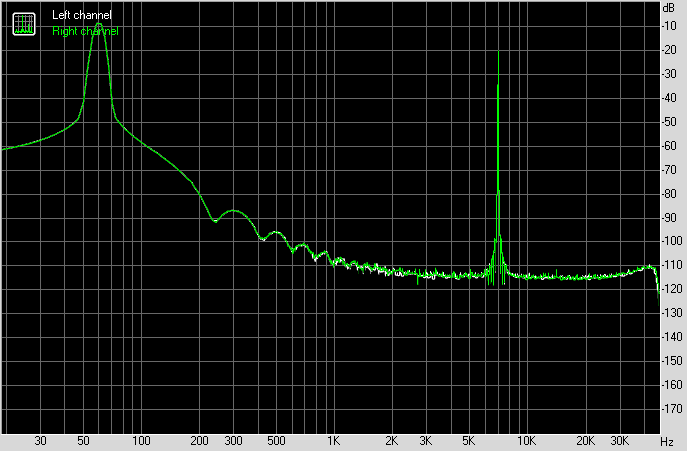

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03102
0.03097
IMD + Noise (A-weighted), %
0.02802
0.02826



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-29
-76
Crosstalk at 1000 Hz, dB
-32
-79
Crosstalk at 10000 Hz, dB
-32
-80



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.02283
0.02208
IMD + Noise at 10000 Hz,
0.02191
0.02169
IMD + Noise at 15000 Hz,
0.02248
0.02295
