RightMark Audio Analyzer test report

Testing device Xperia_10_IV+3_5+Neutron_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change 0.6 dB / 0.6 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.05
Excellent
Noise level, dB (A)
-83.1
Good
Dynamic range, dB (A)
83.2
Good
THD, %
0.00355
Very good
THD + Noise, dB (A)
-76.7
Average
IMD + Noise, %
0.020
Good
Stereo crosstalk, dB
-79.1
Very good
IMD at 10 kHz, %
0.019
Very good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.18, +0.02
-0.13, +0.07
From 40 Hz to 15 kHz, dB
-0.05, +0.02
+0.01, +0.07

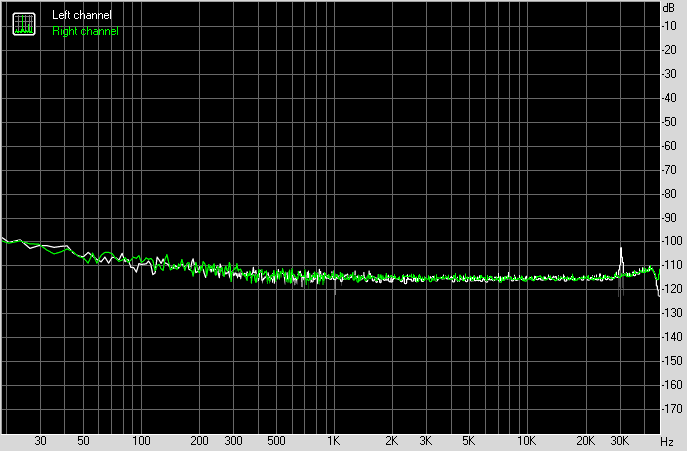

Noise level

Spectrum graph


Left
Right
RMS power, dB
-82.0
-81.8
RMS power (A-weighted), dB
-83.2
-82.9
Peak level, dB FS
-63.4
-64.8
DC offset, %
+0.0
-0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+82.1
+81.9
Dynamic range (A-weighted), dB
+83.4
+83.0
DC offset, %
-0.00
+0.00

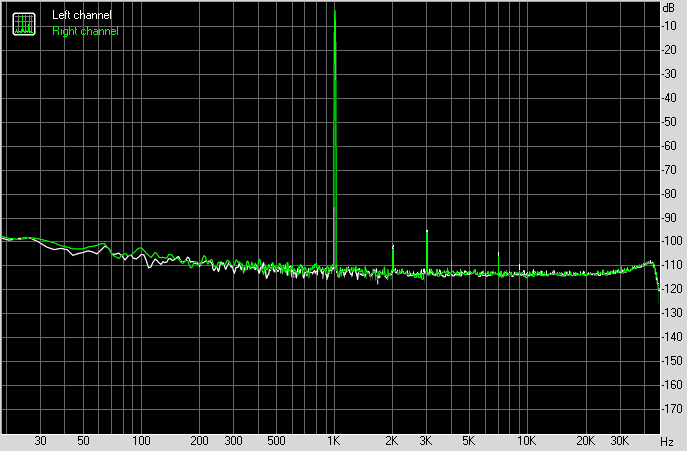

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00369
0.00342
THD + Noise, %
0.01646
0.01656
THD + Noise (A-weighted), %
0.01454
0.01486



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.02002
0.02032
IMD + Noise (A-weighted), %
0.01713
0.01780

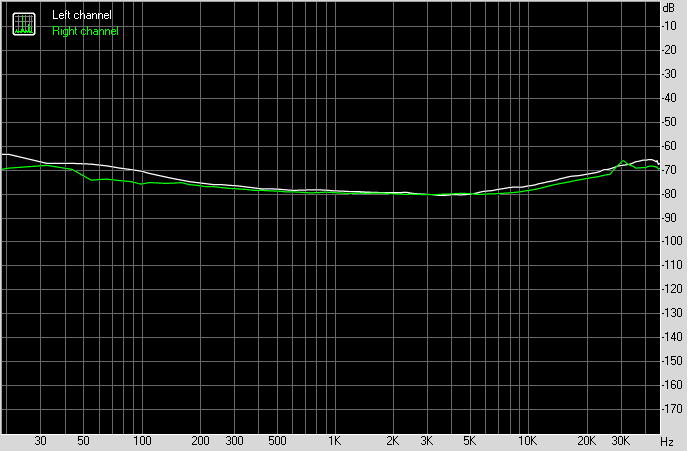

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-70
-75
Crosstalk at 1000 Hz, dB
-78
-78
Crosstalk at 10000 Hz, dB
-76
-77



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.01941
0.01931
IMD + Noise at 10000 Hz,
0.01937
0.01940
IMD + Noise at 15000 Hz,
0.01991
0.01956
