RightMark Audio Analyzer test report

Testing device XQ-FE44+AMS-22_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -4.0 dB / -4.1 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.05
Excellent
Noise level, dB (A)
-90.2
Very good
Dynamic range, dB (A)
90.2
Very good
THD, %
0.00302
Very good
THD + Noise, dB (A)
-82.1
Good
IMD + Noise, %
0.011
Very good
Stereo crosstalk, dB
-42.5
Poor
IMD at 10 kHz, %
0.00992
Very good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.10, +0.01
-0.20, -0.09
From 40 Hz to 15 kHz, dB
-0.05, +0.01
-0.15, -0.09

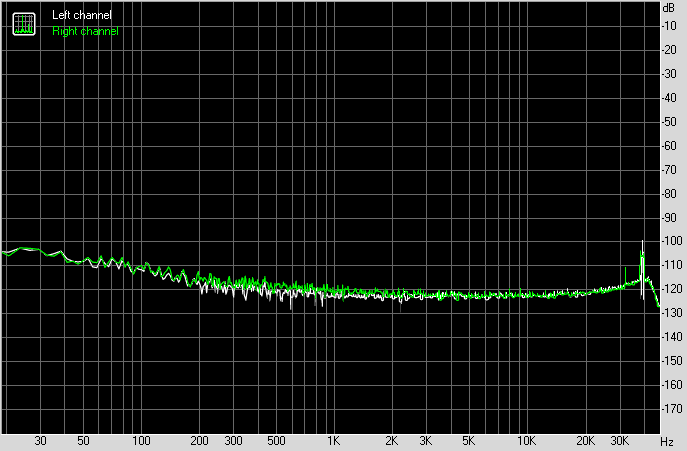

Noise level

Spectrum graph


Left
Right
RMS power, dB
-88.1
-87.6
RMS power (A-weighted), dB
-90.5
-89.8
Peak level, dB FS
-68.2
-68.3
DC offset, %
-0.0
-0.0

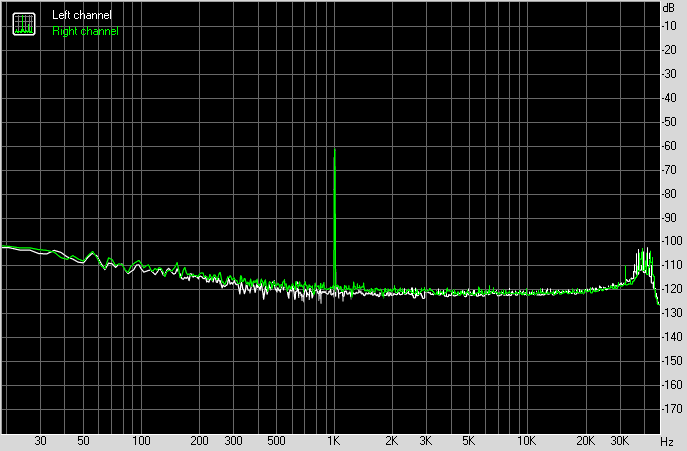

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+88.3
+87.7
Dynamic range (A-weighted), dB
+90.7
+89.7
DC offset, %
-0.00
-0.00

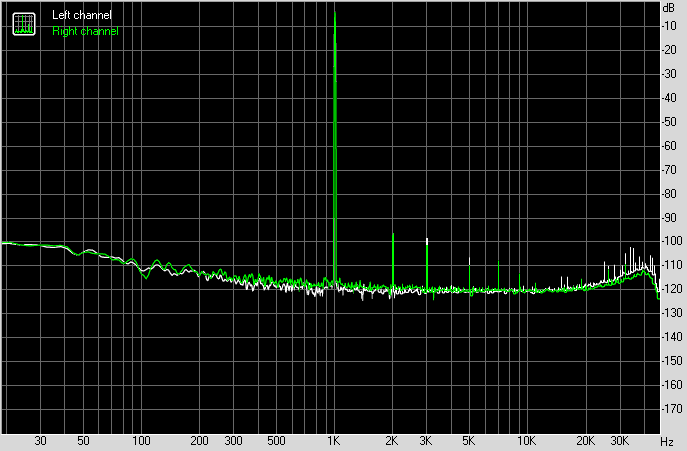

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00293
0.00310
THD + Noise, %
0.00861
0.00940
THD + Noise (A-weighted), %
0.00751
0.00823

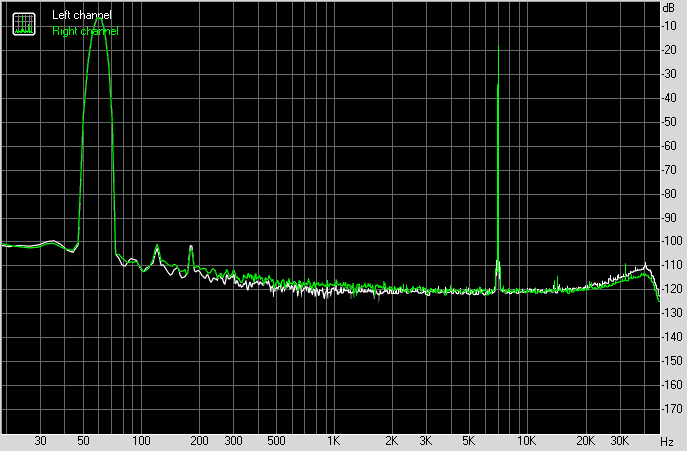

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.01090
0.01127
IMD + Noise (A-weighted), %
0.00823
0.00905



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-40
-41
Crosstalk at 1000 Hz, dB
-41
-42
Crosstalk at 10000 Hz, dB
-41
-42

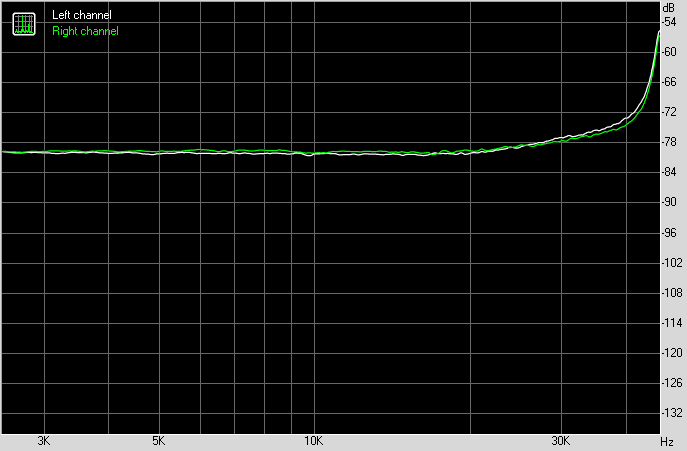

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.00978
0.01034
IMD + Noise at 10000 Hz,
0.00974
0.00997
IMD + Noise at 15000 Hz,
0.00960
0.01008
