RightMark Audio Analyzer test report

Testing device XQ-ES44+AMS-22_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -5.2 dB / -5.3 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.06
Excellent
Noise level, dB (A)
-88.8
Good
Dynamic range, dB (A)
88.9
Good
THD, %
0.00267
Excellent
THD + Noise, dB (A)
-81.3
Good
IMD + Noise, %
0.012
Very good
Stereo crosstalk, dB
-42.5
Poor
IMD at 10 kHz, %
0.012
Very good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.11, +0.01
-0.18, -0.06
From 40 Hz to 15 kHz, dB
-0.06, +0.01
-0.13, -0.06

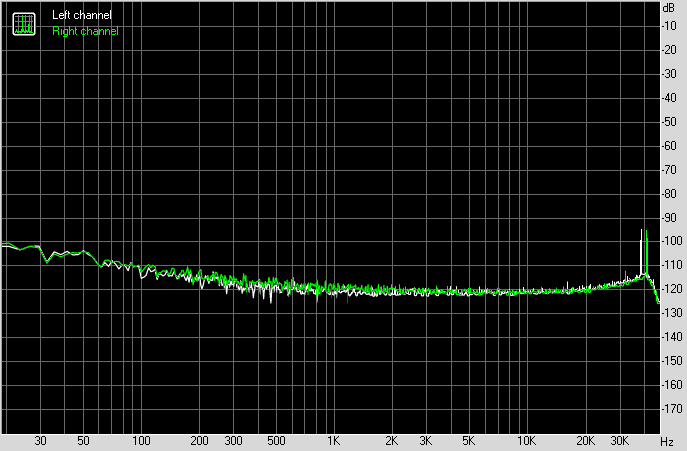

Noise level

Spectrum graph


Left
Right
RMS power, dB
-87.2
-86.7
RMS power (A-weighted), dB
-89.1
-88.5
Peak level, dB FS
-67.2
-66.1
DC offset, %
-0.0
-0.0

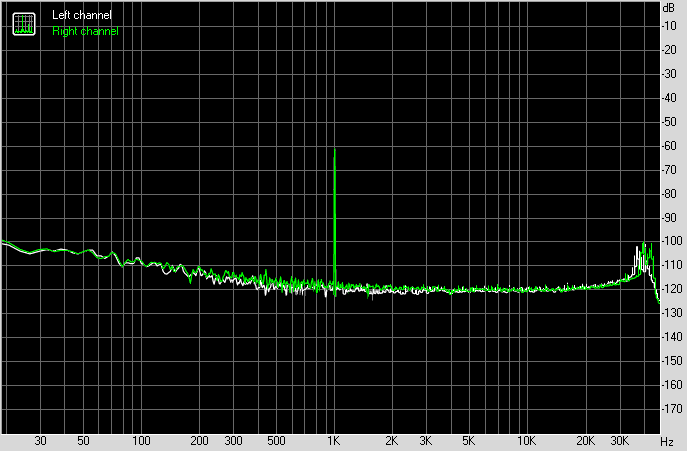

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+87.1
+86.7
Dynamic range (A-weighted), dB
+89.3
+88.6
DC offset, %
-0.00
-0.00

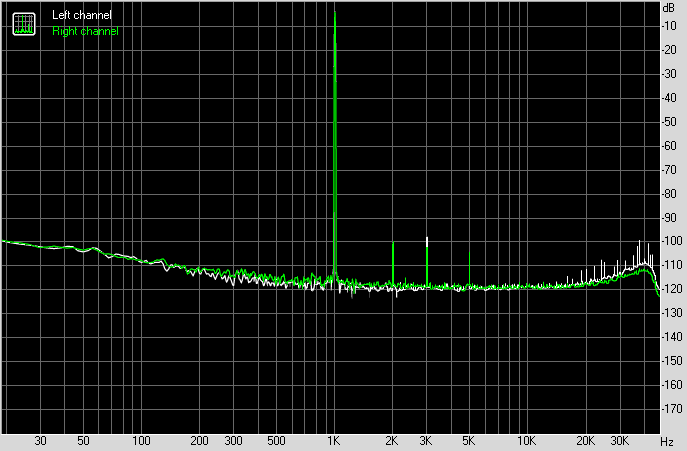

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00276
0.00259
THD + Noise, %
0.01045
0.01079
THD + Noise (A-weighted), %
0.00837
0.00876

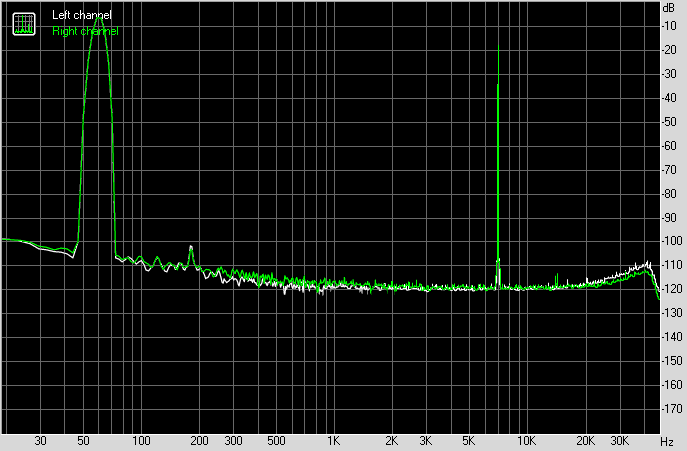

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.01220
0.01274
IMD + Noise (A-weighted), %
0.00969
0.01039



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-40
-41
Crosstalk at 1000 Hz, dB
-41
-42
Crosstalk at 10000 Hz, dB
-41
-41

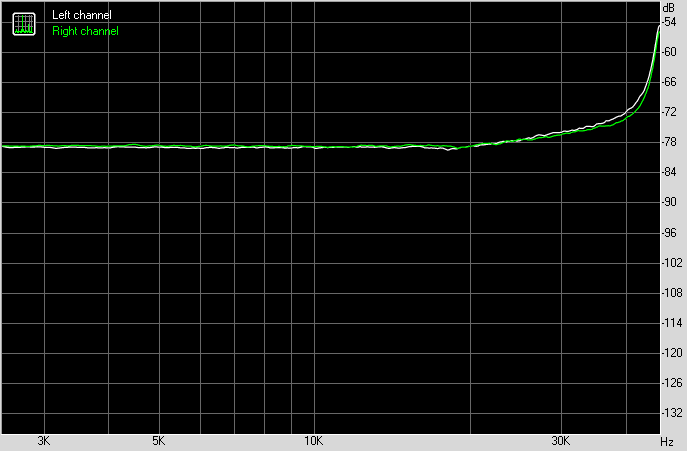

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.01138
0.01189
IMD + Noise at 10000 Hz,
0.01113
0.01155
IMD + Noise at 15000 Hz,
0.01130
0.01199
