RightMark Audio Analyzer test report

Testing device Sharkoon_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -2.7 dB / -2.8 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.05, -0.04
Excellent
Noise level, dB (A)
-80.1
Good
Dynamic range, dB (A)
80.0
Good
THD, %
0.00421
Very good
THD + Noise, dB (A)
-73.0
Average
IMD + Noise, %
0.039
Good
Stereo crosstalk, dB
-76.0
Very good
IMD at 10 kHz, %
0.031
Good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.16, +0.05
-0.31, -0.06
From 40 Hz to 15 kHz, dB
-0.04, +0.05
-0.14, -0.06

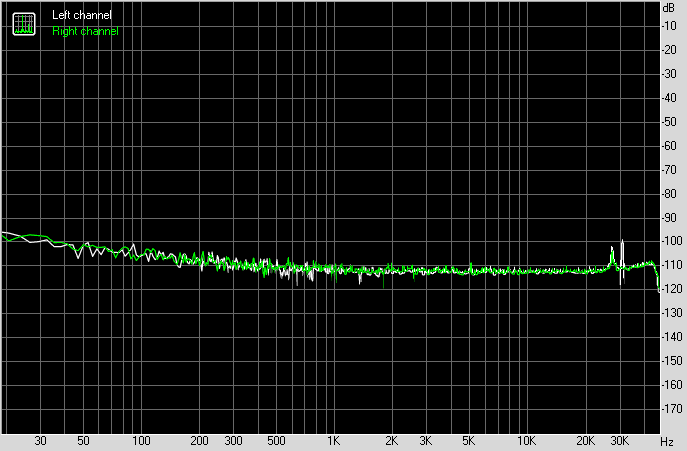

Noise level

Spectrum graph


Left
Right
RMS power, dB
-79.0
-78.7
RMS power (A-weighted), dB
-80.3
-80.0
Peak level, dB FS
-60.4
-61.3
DC offset, %
+0.0
-0.0

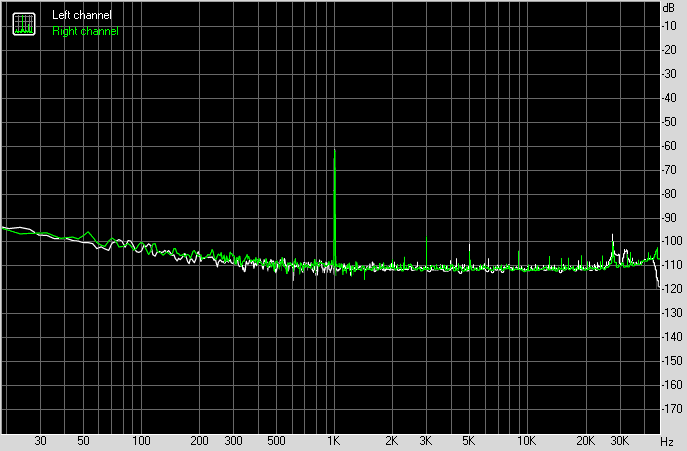

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+78.8
+78.7
Dynamic range (A-weighted), dB
+80.1
+80.0
DC offset, %
-0.00
-0.00

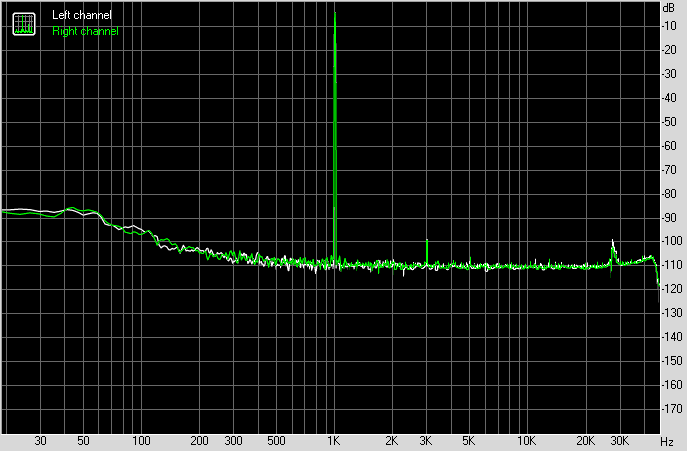

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00405
0.00437
THD + Noise, %
0.03237
0.03342
THD + Noise (A-weighted), %
0.02183
0.02271

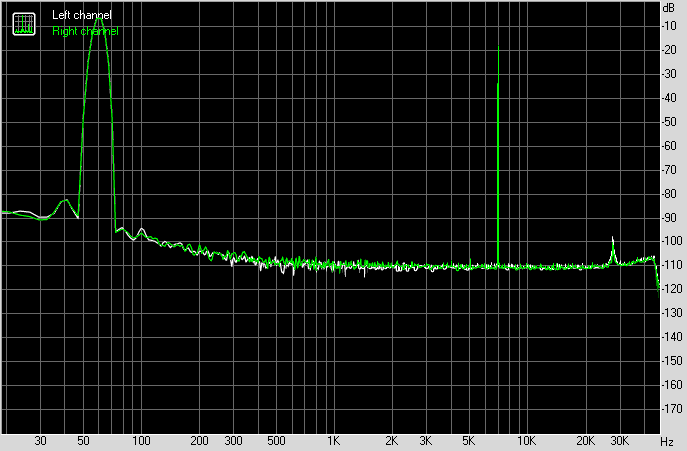

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03727
0.04024
IMD + Noise (A-weighted), %
0.02634
0.02759



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-68
-71
Crosstalk at 1000 Hz, dB
-75
-75
Crosstalk at 10000 Hz, dB
-76
-76



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.02999
0.03055
IMD + Noise at 10000 Hz,
0.02987
0.03216
IMD + Noise at 15000 Hz,
0.03105
0.03126
