RightMark Audio Analyzer test report

Testing device Sharkoon_44.1kHz
Sampling mode 16-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -2.7 dB / -2.8 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.04
Excellent
Noise level, dB (A)
-80.0
Good
Dynamic range, dB (A)
79.9
Average
THD, %
0.00316
Very good
THD + Noise, dB (A)
-72.8
Average
IMD + Noise, %
0.033
Good
Stereo crosstalk, dB
-79.0
Very good
IMD at 10 kHz, %
0.031
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.37, +0.01
-0.48, -0.10
From 40 Hz to 15 kHz, dB
-0.04, +0.01
-0.15, -0.10

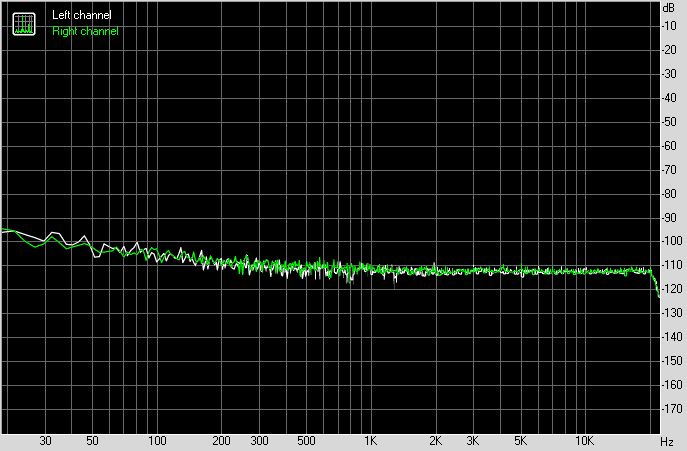

Noise level

Spectrum graph


Left
Right
RMS power, dB
-78.7
-78.7
RMS power (A-weighted), dB
-80.2
-79.9
Peak level, dB FS
-64.6
-65.1
DC offset, %
+0.0
-0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+78.6
+78.4
Dynamic range (A-weighted), dB
+80.0
+79.7
DC offset, %
-0.00
-0.00

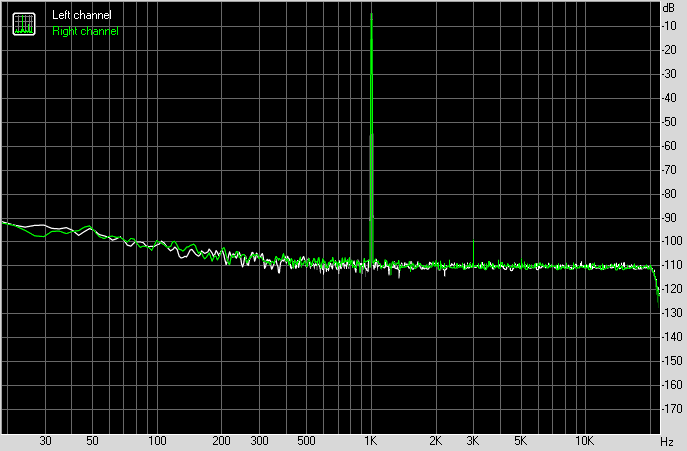

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00299
0.00333
THD + Noise, %
0.02612
0.02734
THD + Noise (A-weighted), %
0.02266
0.02331

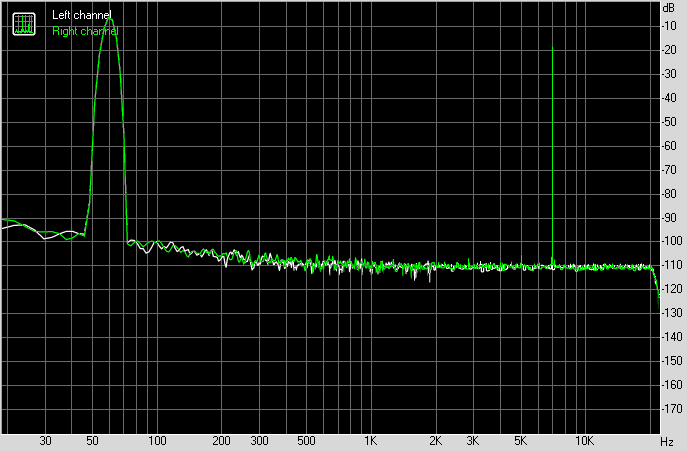

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03253
0.03299
IMD + Noise (A-weighted), %
0.02726
0.02857



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-73
-72
Crosstalk at 1000 Hz, dB
-78
-78
Crosstalk at 10000 Hz, dB
-78
-79

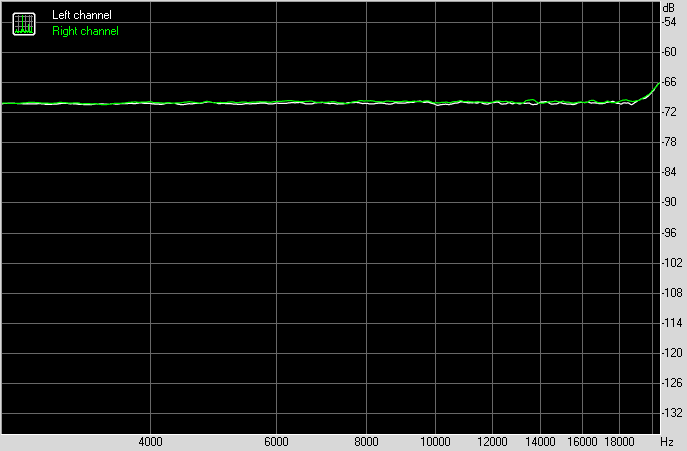

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.03096
0.03178
IMD + Noise at 10000 Hz,
0.03019
0.03156
IMD + Noise at 15000 Hz,
0.03118
0.03272
