RightMark Audio Analyzer test report

Testing device SHANLING M0Pro 96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.4 dB / -0.4 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.13
Excellent
Noise level, dB (A)
-84.4
Good
Dynamic range, dB (A)
84.5
Good
THD, %
0.00337
Very good
THD + Noise, dB (A)
-76.7
Average
IMD + Noise, %
0.020
Very good
Stereo crosstalk, dB
-60.9
Average
IMD at 10 kHz, %
0.020
Very good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.25, +0.03
-0.27, +0.01
From 40 Hz to 15 kHz, dB
-0.11, +0.03
-0.13, +0.01

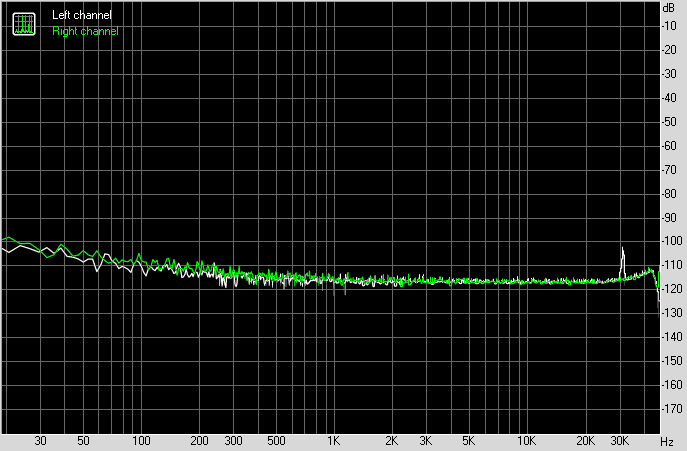

Noise level

Spectrum graph


Left
Right
RMS power, dB
-83.4
-83.0
RMS power (A-weighted), dB
-84.6
-84.3
Peak level, dB FS
-63.0
-65.5
DC offset, %
+0.0
-0.0

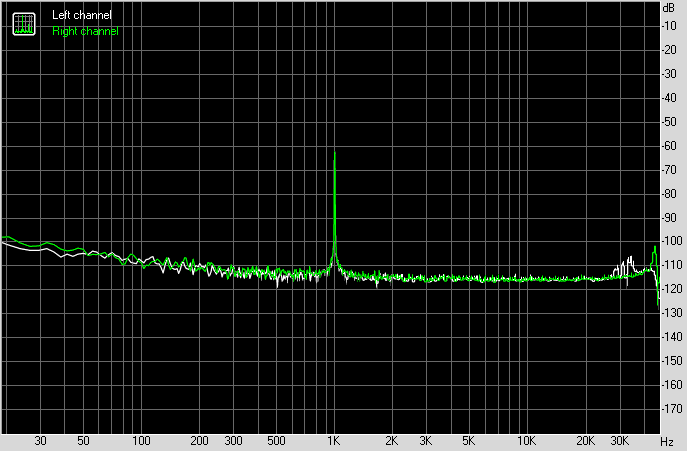

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+83.4
+83.0
Dynamic range (A-weighted), dB
+84.6
+84.3
DC offset, %
-0.00
-0.00

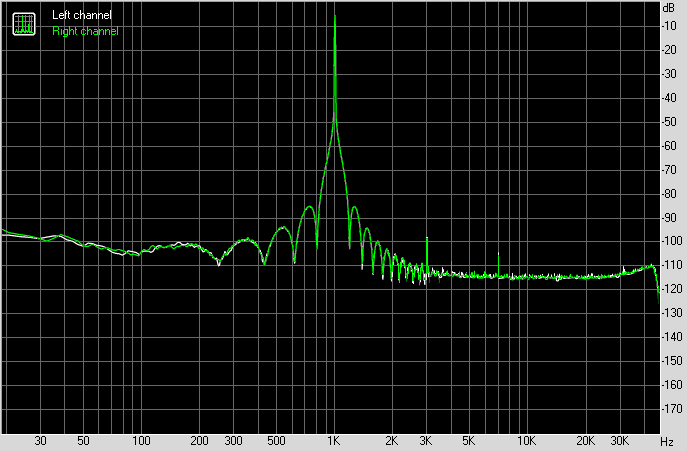

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00352
0.00322
THD + Noise, %
0.01676
0.01683
THD + Noise (A-weighted), %
0.01463
0.01460

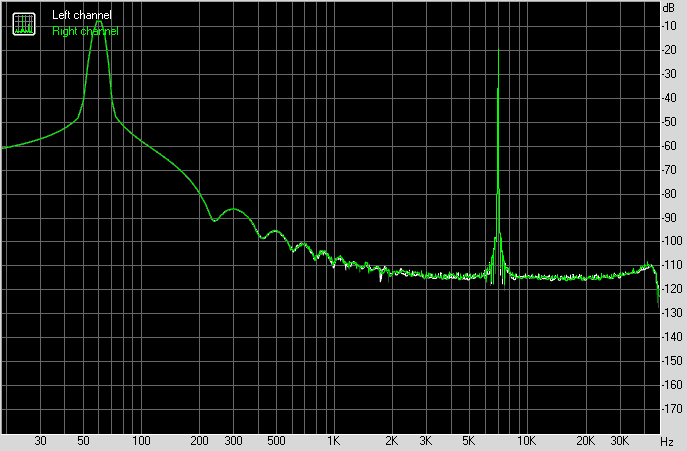

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.01974
0.02009
IMD + Noise (A-weighted), %
0.01729
0.01786

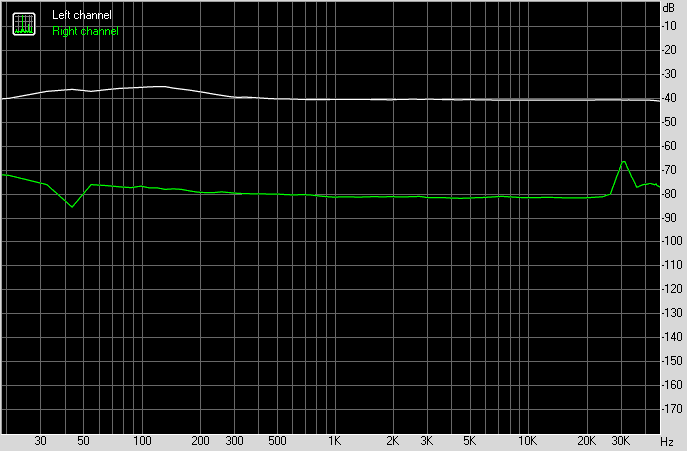

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-34
-76
Crosstalk at 1000 Hz, dB
-40
-80
Crosstalk at 10000 Hz, dB
-40
-80



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.01962
0.01981
IMD + Noise at 10000 Hz,
0.02012
0.01984
IMD + Noise at 15000 Hz,
0.01948
0.02086
