RightMark Audio Analyzer test report

Testing device SH-M20+3.5_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -6.2 dB / -6.2 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.00, -0.05
Excellent
Noise level, dB (A)
-77.5
Average
Dynamic range, dB (A)
77.5
Average
THD, %
0.00538
Very good
THD + Noise, dB (A)
-70.3
Average
IMD + Noise, %
0.042
Good
Stereo crosstalk, dB
-73.7
Good
IMD at 10 kHz, %
0.043
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.20, +0.01
-0.20, +0.00
From 40 Hz to 15 kHz, dB
-0.04, +0.01
-0.05, +0.00

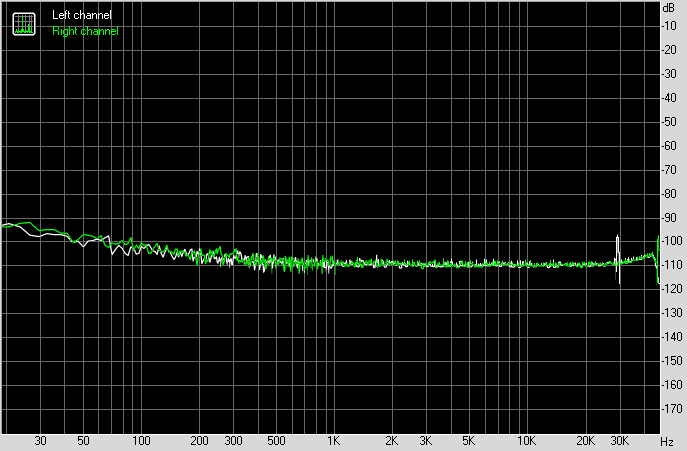

Noise level

Spectrum graph


Left
Right
RMS power, dB
-76.3
-76.0
RMS power (A-weighted), dB
-77.5
-77.4
Peak level, dB FS
-58.0
-57.2
DC offset, %
-0.0
-0.0

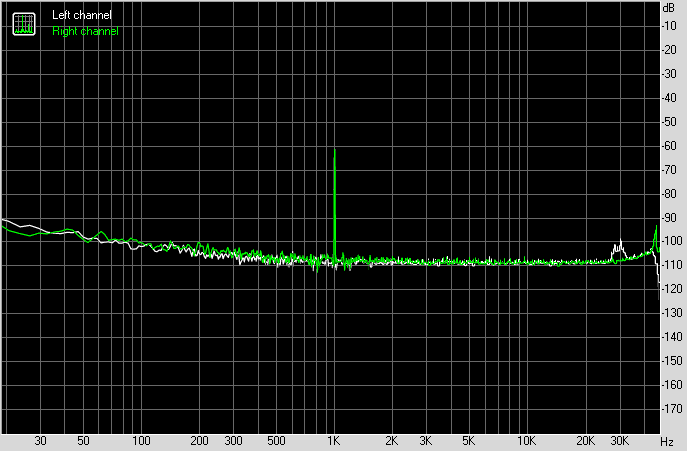

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+76.2
+76.1
Dynamic range (A-weighted), dB
+77.6
+77.3
DC offset, %
+0.00
+0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00534
0.00542
THD + Noise, %
0.03473
0.03567
THD + Noise (A-weighted), %
0.03030
0.03084

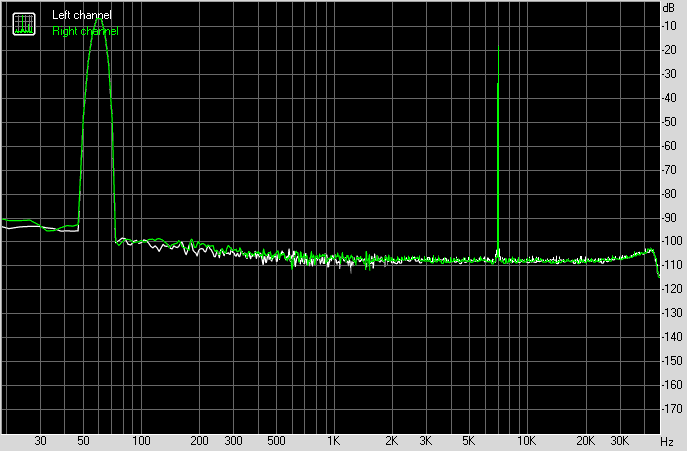

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.04293
0.04201
IMD + Noise (A-weighted), %
0.03697
0.03682



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-67
-70
Crosstalk at 1000 Hz, dB
-72
-73
Crosstalk at 10000 Hz, dB
-73
-74

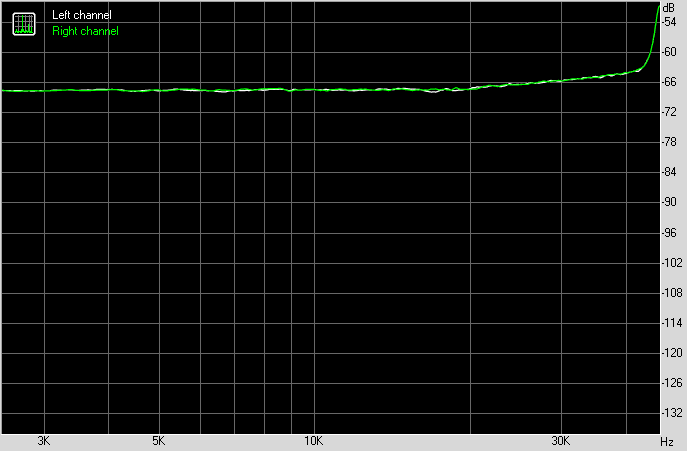

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.04147
0.04235
IMD + Noise at 10000 Hz,
0.04281
0.04262
IMD + Noise at 15000 Hz,
0.04383
0.04266
