RightMark Audio Analyzer test report

Testing device SH-M19+3_5+Neutron_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -4.6 dB / -4.6 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.04
Excellent
Noise level, dB (A)
-78.9
Average
Dynamic range, dB (A)
78.9
Average
THD, %
0.00475
Very good
THD + Noise, dB (A)
-71.8
Average
IMD + Noise, %
0.037
Good
Stereo crosstalk, dB
-75.6
Very good
IMD at 10 kHz, %
0.036
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.19, +0.01
-0.23, +0.03
From 40 Hz to 15 kHz, dB
-0.04, +0.01
-0.02, +0.03

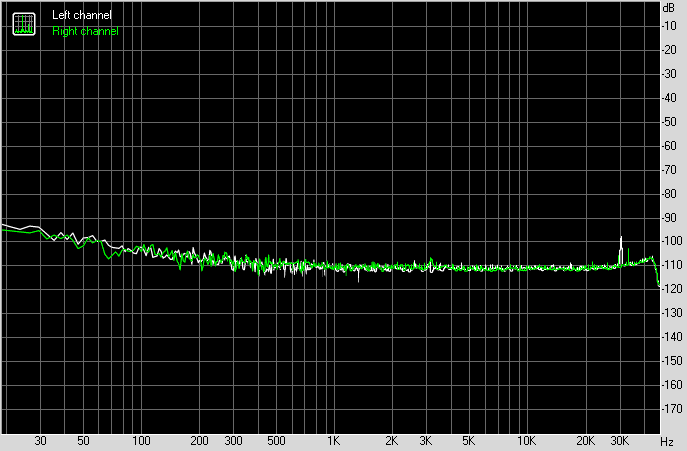

Noise level

Spectrum graph


Left
Right
RMS power, dB
-77.6
-77.6
RMS power (A-weighted), dB
-79.0
-78.8
Peak level, dB FS
-58.9
-60.0
DC offset, %
-0.0
+0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+77.7
+77.6
Dynamic range (A-weighted), dB
+79.1
+78.7
DC offset, %
-0.00
+0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00473
0.00477
THD + Noise, %
0.03038
0.02918
THD + Noise (A-weighted), %
0.02562
0.02588

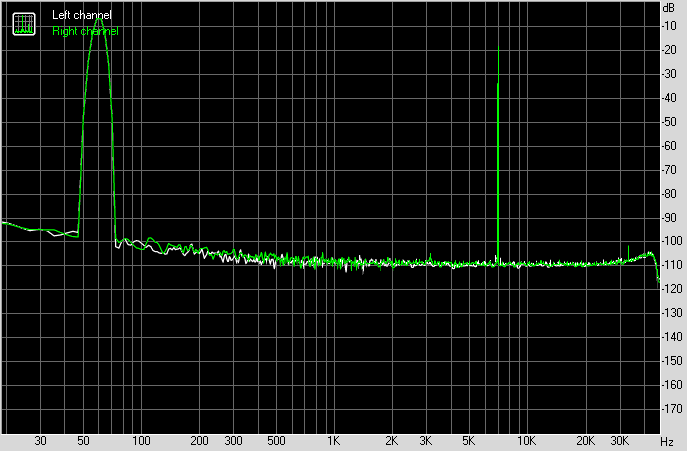

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03682
0.03630
IMD + Noise (A-weighted), %
0.03099
0.03189



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-66
-71
Crosstalk at 1000 Hz, dB
-74
-75
Crosstalk at 10000 Hz, dB
-75
-74



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.03543
0.03550
IMD + Noise at 10000 Hz,
0.03547
0.03572
IMD + Noise at 15000 Hz,
0.03668
0.03662
