RightMark Audio Analyzer test report

Testing device SH-M09+Music_48kHz
Sampling mode 16-bit, 48 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -5.8 dB / -5.8 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.05
Excellent
Noise level, dB (A)
-78.0
Average
Dynamic range, dB (A)
78.0
Average
THD, %
0.00431
Very good
THD + Noise, dB (A)
-70.6
Average
IMD + Noise, %
0.042
Good
Stereo crosstalk, dB
-76.5
Very good
IMD at 10 kHz, %
0.041
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.18, +0.02
-0.18, +0.01
From 40 Hz to 15 kHz, dB
-0.04, +0.02
-0.05, +0.01



Noise level

Spectrum graph


Left
Right
RMS power, dB
-76.8
-76.7
RMS power (A-weighted), dB
-78.0
-78.0
Peak level, dB FS
-62.9
-61.2
DC offset, %
-0.0
-0.0

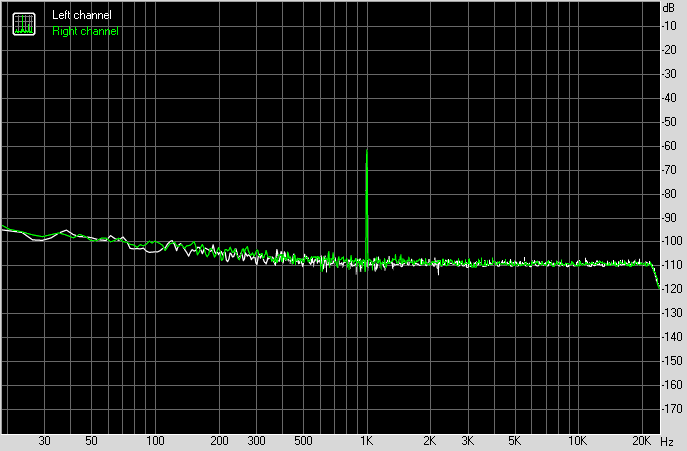

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+76.8
+76.7
Dynamic range (A-weighted), dB
+78.1
+77.9
DC offset, %
+0.00
+0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00447
0.00416
THD + Noise, %
0.03327
0.03445
THD + Noise (A-weighted), %
0.02941
0.02994



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.04147
0.04183
IMD + Noise (A-weighted), %
0.03552
0.03594



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-70
-71
Crosstalk at 1000 Hz, dB
-75
-76
Crosstalk at 10000 Hz, dB
-76
-77



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.04075
0.04125
IMD + Noise at 10000 Hz,
0.04021
0.04148
IMD + Noise at 15000 Hz,
0.04097
0.04033
