RightMark Audio Analyzer test report

Testing device Rakuten_Hand+3_5+Neutron+96kHz_0521
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change 0.1 dB / 0.0 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.04
Excellent
Noise level, dB (A)
-82.7
Good
Dynamic range, dB (A)
82.5
Good
THD, %
0.00525
Very good
THD + Noise, dB (A)
-75.7
Average
IMD + Noise, %
0.022
Good
Stereo crosstalk, dB
-79.1
Very good
IMD at 10 kHz, %
0.021
Good
General performance

Very good

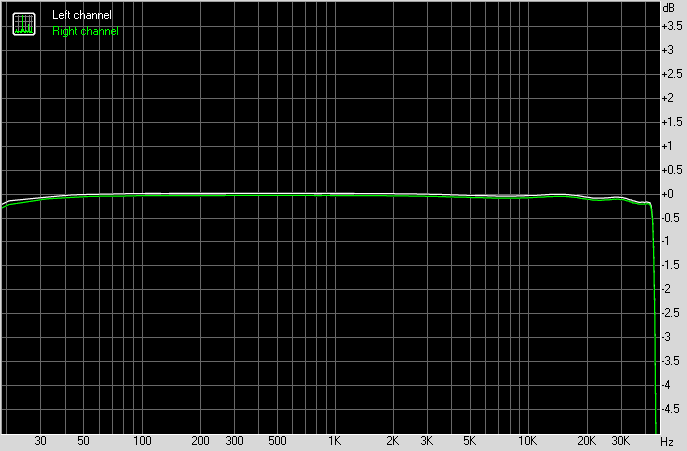

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.18, +0.02
-0.25, -0.03
From 40 Hz to 15 kHz, dB
-0.04, +0.02
-0.09, -0.03

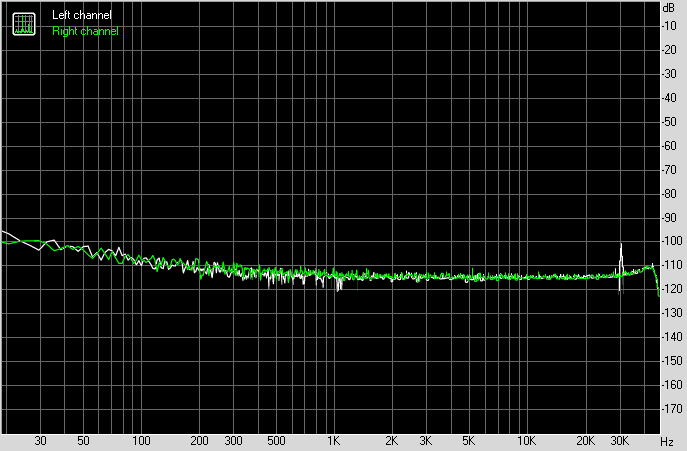

Noise level

Spectrum graph


Left
Right
RMS power, dB
-81.6
-81.4
RMS power (A-weighted), dB
-82.8
-82.6
Peak level, dB FS
-62.3
-64.8
DC offset, %
+0.0
-0.0

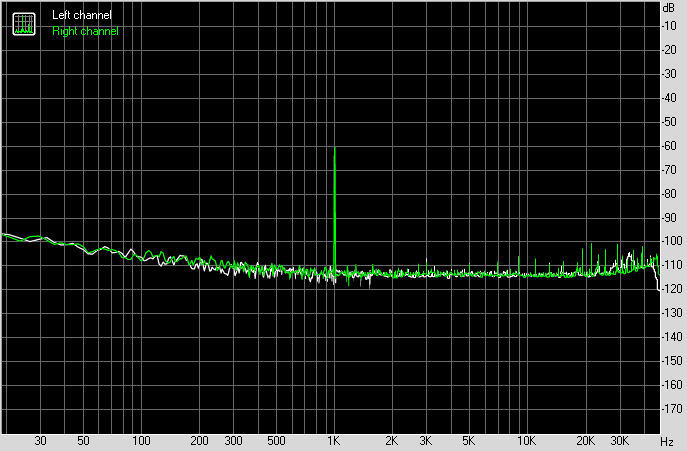

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+81.2
+81.3
Dynamic range (A-weighted), dB
+82.6
+82.5
DC offset, %
+0.00
+0.00

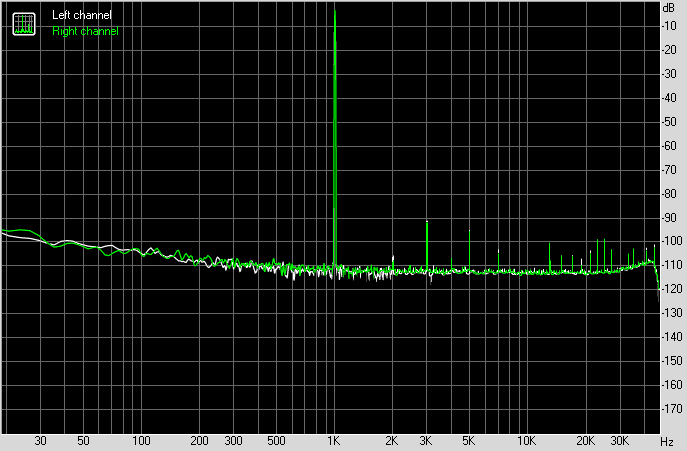

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00548
0.00502
THD + Noise, %
0.01782
0.01817
THD + Noise (A-weighted), %
0.01630
0.01633

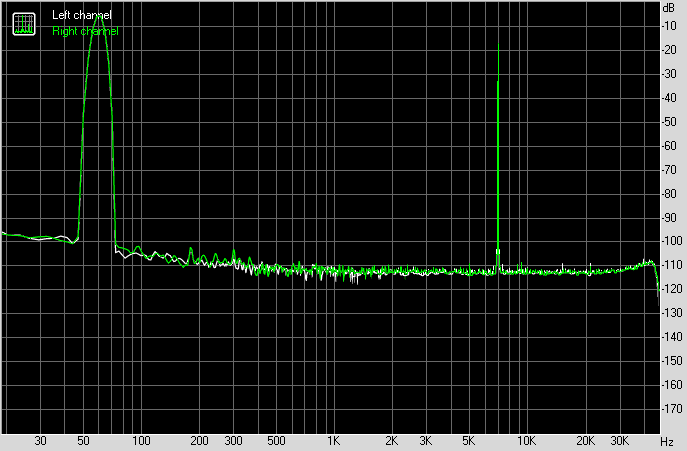

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.02139
0.02241
IMD + Noise (A-weighted), %
0.01843
0.01949



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-72
-76
Crosstalk at 1000 Hz, dB
-78
-78
Crosstalk at 10000 Hz, dB
-78
-78



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.02118
0.02162
IMD + Noise at 10000 Hz,
0.02105
0.02118
IMD + Noise at 15000 Hz,
0.02053
0.02221
