RightMark Audio Analyzer test report

Testing device F-51C+UAPP_device_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -3.5 dB / -3.5 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.05
Excellent
Noise level, dB (A)
-80.0
Good
Dynamic range, dB (A)
80.1
Good
THD, %
0.00402
Very good
THD + Noise, dB (A)
-72.7
Average
IMD + Noise, %
0.032
Good
Stereo crosstalk, dB
-75.6
Very good
IMD at 10 kHz, %
0.032
Good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.16, +0.02
-0.20, -0.00
From 40 Hz to 15 kHz, dB
-0.05, +0.02
-0.06, -0.00

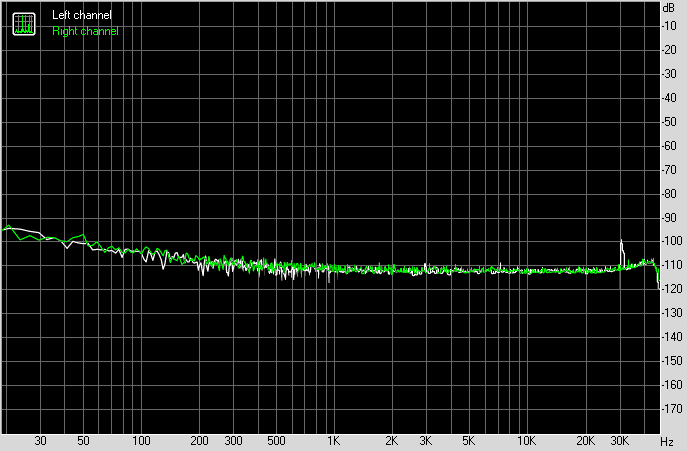

Noise level

Spectrum graph


Left
Right
RMS power, dB
-78.8
-78.6
RMS power (A-weighted), dB
-80.2
-79.8
Peak level, dB FS
-61.2
-60.6
DC offset, %
-0.0
-0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+78.8
+78.8
Dynamic range (A-weighted), dB
+80.1
+80.1
DC offset, %
-0.00
-0.00

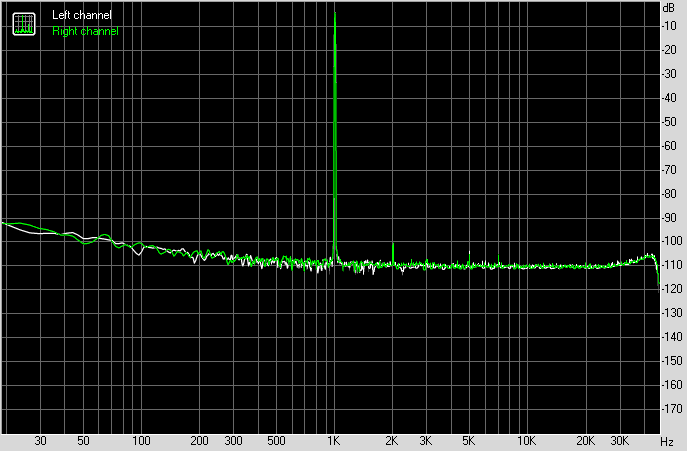

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00408
0.00395
THD + Noise, %
0.02641
0.02736
THD + Noise (A-weighted), %
0.02303
0.02332



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03114
0.03289
IMD + Noise (A-weighted), %
0.02713
0.02849



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-65
-73
Crosstalk at 1000 Hz, dB
-74
-75
Crosstalk at 10000 Hz, dB
-76
-76



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.03107
0.03245
IMD + Noise at 10000 Hz,
0.03116
0.03250
IMD + Noise at 15000 Hz,
0.03227
0.03214
