RightMark Audio Analyzer test report

Testing device F-02L_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -4.1 dB / -4.1 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity inverted/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.07
Excellent
Noise level, dB (A)
-79.5
Average
Dynamic range, dB (A)
79.5
Average
THD, %
0.00428
Very good
THD + Noise, dB (A)
-72.3
Average
IMD + Noise, %
0.034
Good
Stereo crosstalk, dB
-75.8
Very good
IMD at 10 kHz, %
0.033
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.34, +0.01
-0.39, -0.01
From 40 Hz to 15 kHz, dB
-0.07, +0.01
-0.09, -0.01

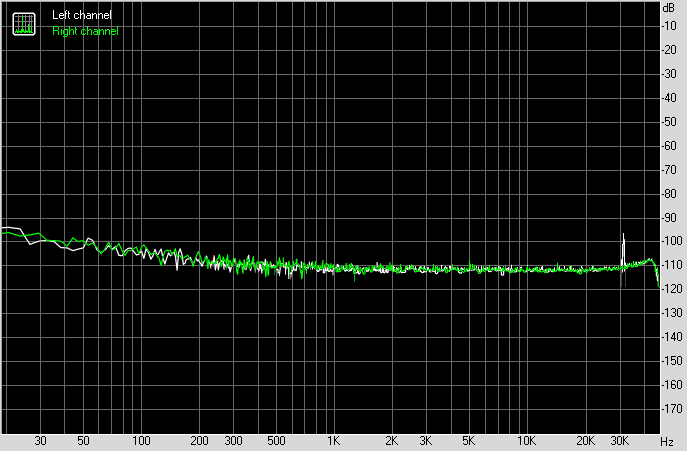

Noise level

Spectrum graph


Left
Right
RMS power, dB
-78.4
-78.1
RMS power (A-weighted), dB
-79.6
-79.3
Peak level, dB FS
-59.4
-61.1
DC offset, %
+0.0
+0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+78.5
+78.1
Dynamic range (A-weighted), dB
+79.7
+79.3
DC offset, %
+0.00
-0.00

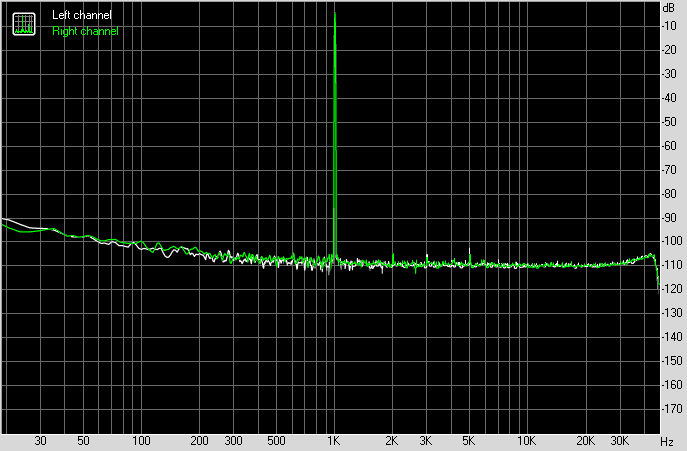

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00433
0.00424
THD + Noise, %
0.02770
0.02797
THD + Noise (A-weighted), %
0.02402
0.02461



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03322
0.03447
IMD + Noise (A-weighted), %
0.02933
0.03004



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-67
-74
Crosstalk at 1000 Hz, dB
-74
-75
Crosstalk at 10000 Hz, dB
-75
-75



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.03303
0.03381
IMD + Noise at 10000 Hz,
0.03296
0.03225
IMD + Noise at 15000 Hz,
0.03356
0.03501
