RightMark Audio Analyzer test report

Testing device F-02L_44.1kHz
Sampling mode 16-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -4.1 dB / -4.1 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity inverted/inverted



Summary

Frequency response (from 40 Hz to 15 kHz), dB
-0.00, -0.09
Excellent
Noise level, dB (A)
-78.9
Average
Dynamic range, dB (A)
78.8
Average
THD, %
0.00313
Very good
THD + Noise, dB (A)
-72.1
Average
IMD + Noise, %
0.035
Good
Stereo crosstalk, dB
-78.1
Very good
IMD at 10 kHz, %
0.034
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.36, +0.02
-0.39, -0.00
From 40 Hz to 15 kHz, dB
-0.07, +0.02
-0.09, -0.00

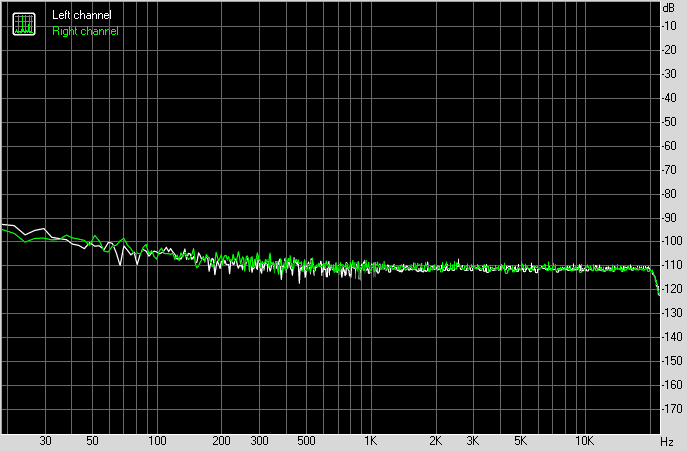

Noise level

Spectrum graph


Left
Right
RMS power, dB
-77.6
-77.6
RMS power (A-weighted), dB
-79.0
-78.7
Peak level, dB FS
-63.8
-62.7
DC offset, %
-0.0
-0.0

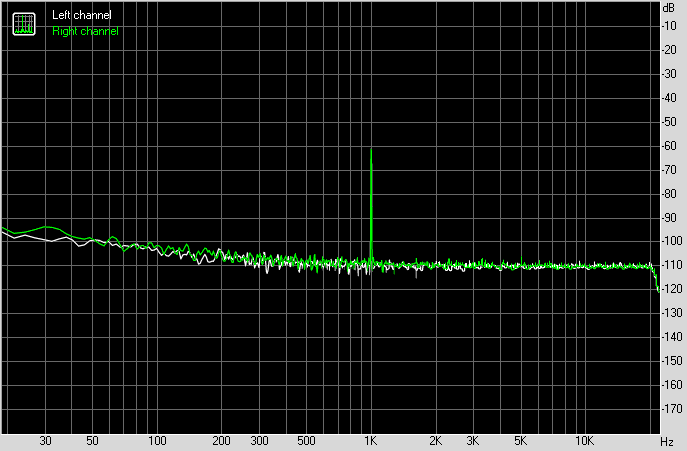

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+77.9
+77.4
Dynamic range (A-weighted), dB
+79.1
+78.6
DC offset, %
+0.00
+0.00

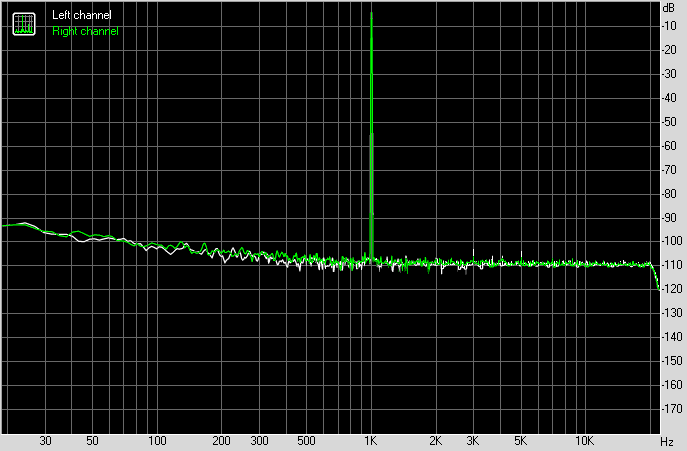

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00327
0.00298
THD + Noise, %
0.02820
0.02898
THD + Noise (A-weighted), %
0.02438
0.02533

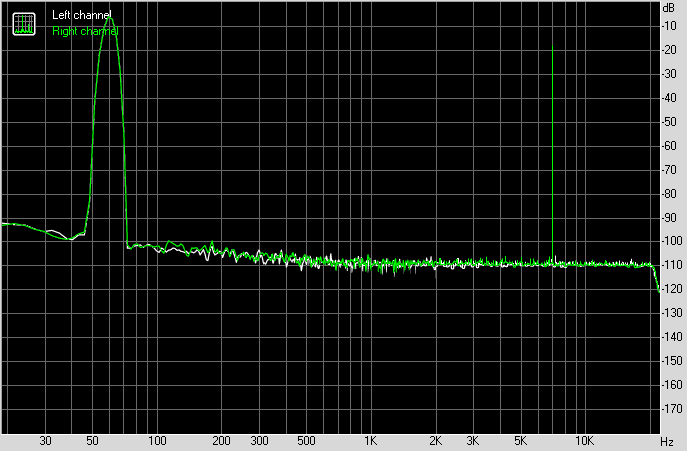

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03431
0.03578
IMD + Noise (A-weighted), %
0.02970
0.03081



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-70
-71
Crosstalk at 1000 Hz, dB
-77
-77
Crosstalk at 10000 Hz, dB
-78
-78

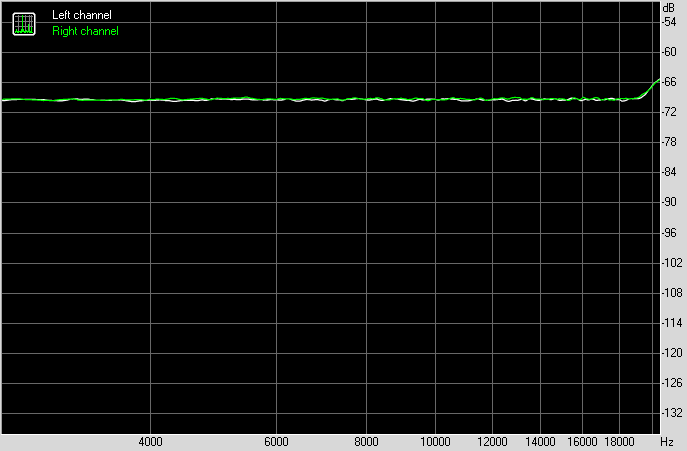

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.03448
0.03486
IMD + Noise at 10000 Hz,
0.03401
0.03399
IMD + Noise at 15000 Hz,
0.03352
0.03447
