RightMark Audio Analyzer test report

Testing device ELECOM_96kHz
Sampling mode 24-bit, 96 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -1.7 dB / -1.7 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.09
Excellent
Noise level, dB (A)
-80.9
Good
Dynamic range, dB (A)
81.1
Good
THD, %
0.00394
Very good
THD + Noise, dB (A)
-72.9
Average
IMD + Noise, %
0.036
Good
Stereo crosstalk, dB
-76.5
Very good
IMD at 10 kHz, %
0.026
Good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.17, +0.04
-0.18, +0.02
From 40 Hz to 15 kHz, dB
-0.06, +0.04
-0.09, +0.02

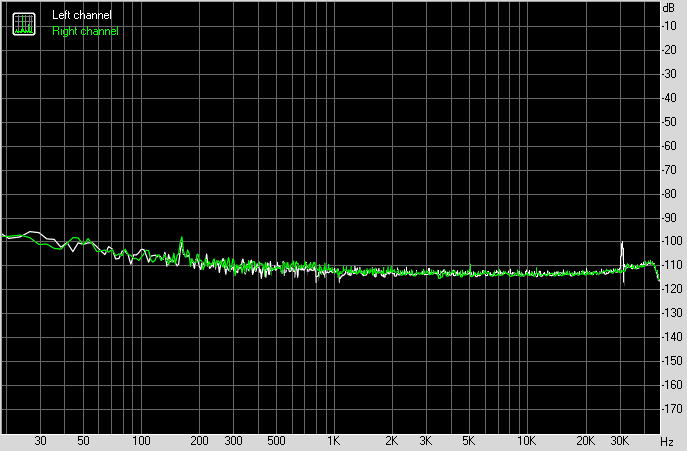

Noise level

Spectrum graph


Left
Right
RMS power, dB
-79.6
-79.6
RMS power (A-weighted), dB
-81.0
-80.8
Peak level, dB FS
-61.7
-62.2
DC offset, %
+0.0
+0.0

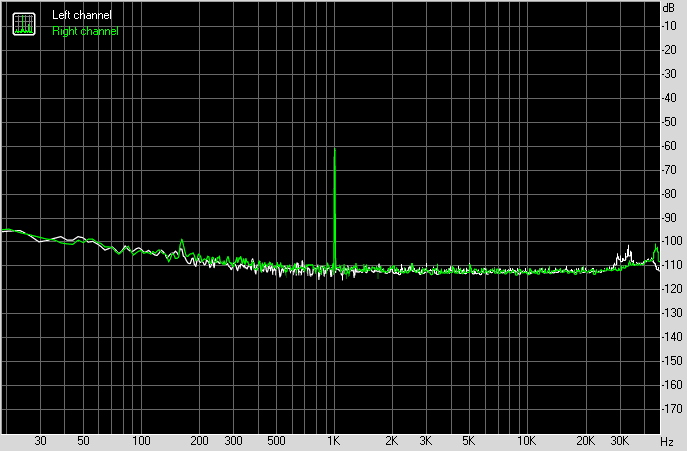

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+79.8
+79.8
Dynamic range (A-weighted), dB
+81.2
+81.1
DC offset, %
-0.00
-0.00



THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00342
0.00445
THD + Noise, %
0.02400
0.02479
THD + Noise (A-weighted), %
0.02204
0.02308

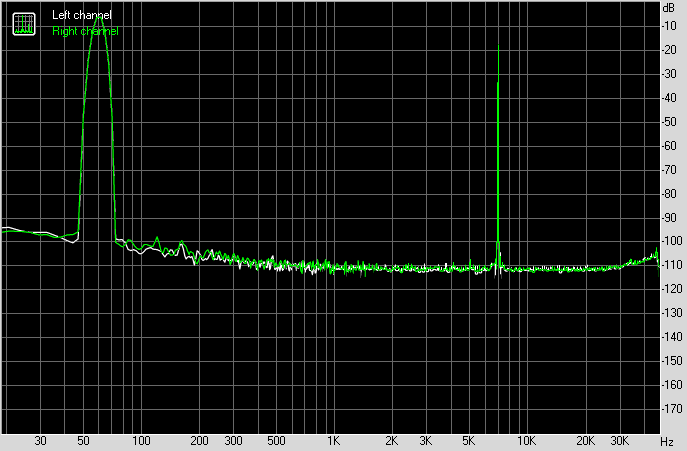

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.03582
0.03592
IMD + Noise (A-weighted), %
0.03289
0.03295



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-68
-71
Crosstalk at 1000 Hz, dB
-75
-76
Crosstalk at 10000 Hz, dB
-75
-75



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.02583
0.02579
IMD + Noise at 10000 Hz,
0.02572
0.02638
IMD + Noise at 15000 Hz,
0.02654
0.02743
