RightMark Audio Analyzer test report

Testing device ELECOM_44.1kHz
Sampling mode 16-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -1.7 dB / -1.7 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.01, -0.12
Excellent
Noise level, dB (A)
-81.6
Good
Dynamic range, dB (A)
81.7
Good
THD, %
0.00335
Very good
THD + Noise, dB (A)
-65.1
Average
IMD + Noise, %
0.041
Good
Stereo crosstalk, dB
-80.3
Very good
IMD at 10 kHz, %
0.027
Good
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-1.78, +0.03
-1.81, +0.01
From 40 Hz to 15 kHz, dB
-0.09, +0.03
-0.12, +0.01

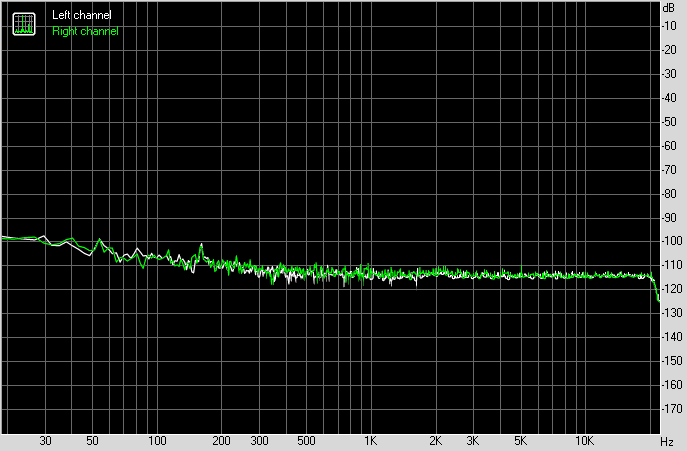

Noise level

Spectrum graph


Left
Right
RMS power, dB
-80.3
-80.2
RMS power (A-weighted), dB
-81.8
-81.4
Peak level, dB FS
-67.0
-67.1
DC offset, %
+0.0
+0.0

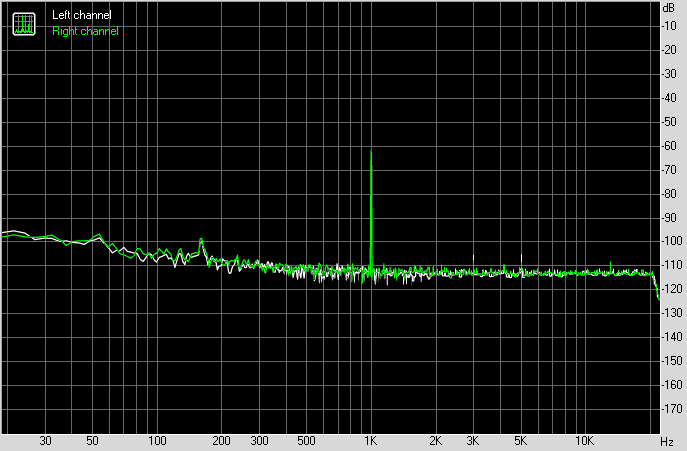

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+80.5
+80.2
Dynamic range (A-weighted), dB
+81.9
+81.5
DC offset, %
+0.00
-0.00

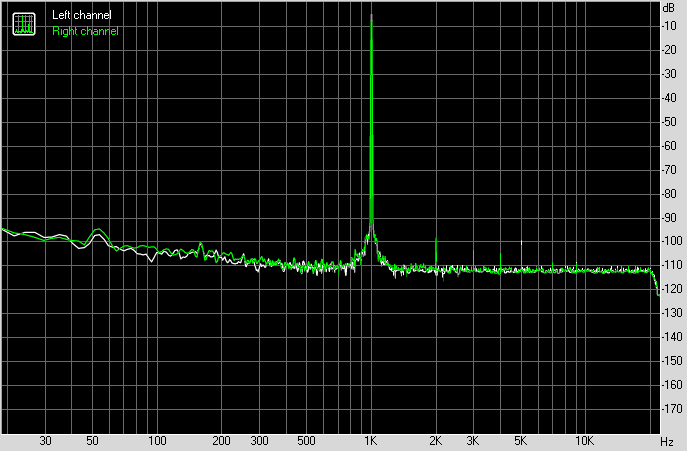

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00315
0.00354
THD + Noise, %
0.05239
0.05232
THD + Noise (A-weighted), %
0.05587
0.05567



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.04114
0.04145
IMD + Noise (A-weighted), %
0.03875
0.03914



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-73
-75
Crosstalk at 1000 Hz, dB
-79
-80
Crosstalk at 10000 Hz, dB
-77
-78

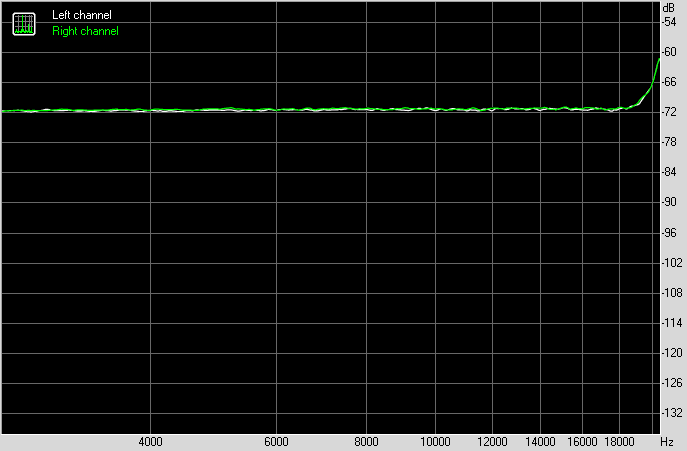

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.02665
0.02721
IMD + Noise at 10000 Hz,
0.02637
0.02742
IMD + Noise at 15000 Hz,
0.02801
0.02822
