RightMark Audio Analyzer test report

Testing device ADV_44.1kHz
Sampling mode 16-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -1.1 dB / -1.2 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity inverted/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.42
Good
Noise level, dB (A)
-81.0
Good
Dynamic range, dB (A)
81.9
Good
THD, %
0.00327
Very good
THD + Noise, dB (A)
-54.1
Poor
IMD + Noise, %
0.153
Average
Stereo crosstalk, dB
-81.5
Very good
IMD at 10 kHz, %
0.025
Good
General performance

Good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-1.16, +0.06
-1.20, +0.02
From 40 Hz to 15 kHz, dB
-0.38, +0.06
-0.42, +0.02

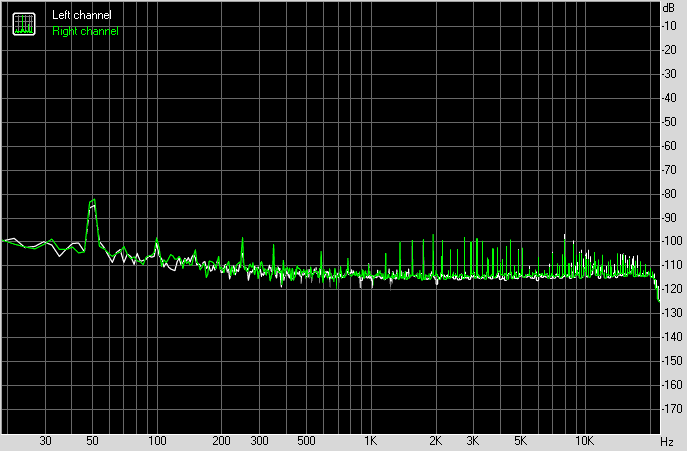

Noise level

Spectrum graph


Left
Right
RMS power, dB
-79.2
-78.3
RMS power (A-weighted), dB
-81.2
-80.7
Peak level, dB FS
-65.9
-65.4
DC offset, %
+0.0
-0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+80.7
+80.6
Dynamic range (A-weighted), dB
+82.0
+81.7
DC offset, %
-0.00
-0.00

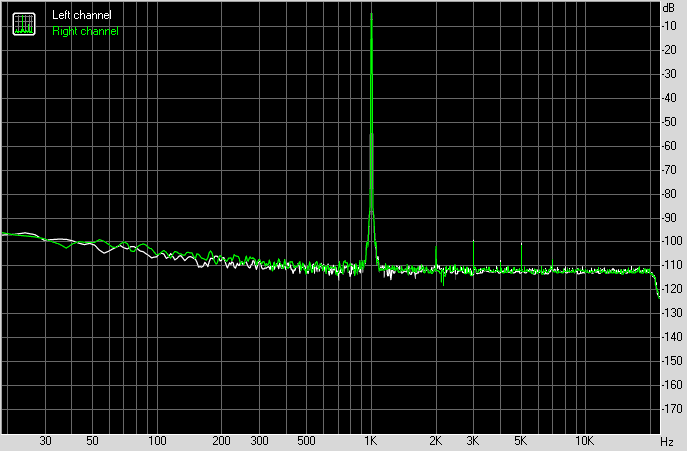

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00320
0.00333
THD + Noise, %
0.17873
0.17864
THD + Noise (A-weighted), %
0.19724
0.19712

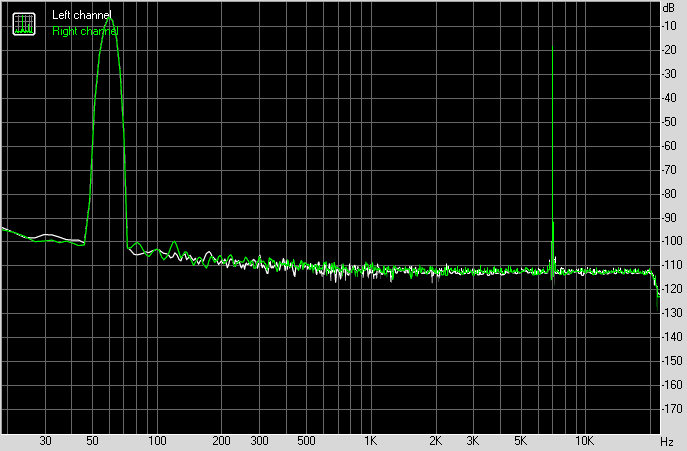

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.15343
0.15324
IMD + Noise (A-weighted), %
0.15278
0.15263



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-74
-75
Crosstalk at 1000 Hz, dB
-80
-81
Crosstalk at 10000 Hz, dB
-79
-80

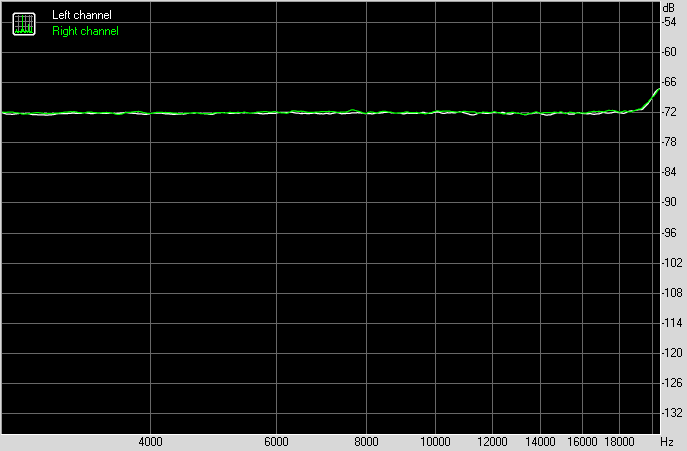

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.02505
0.02521
IMD + Noise at 10000 Hz,
0.02541
0.02602
IMD + Noise at 15000 Hz,
0.02504
0.02540
